What is Engine Support Bar

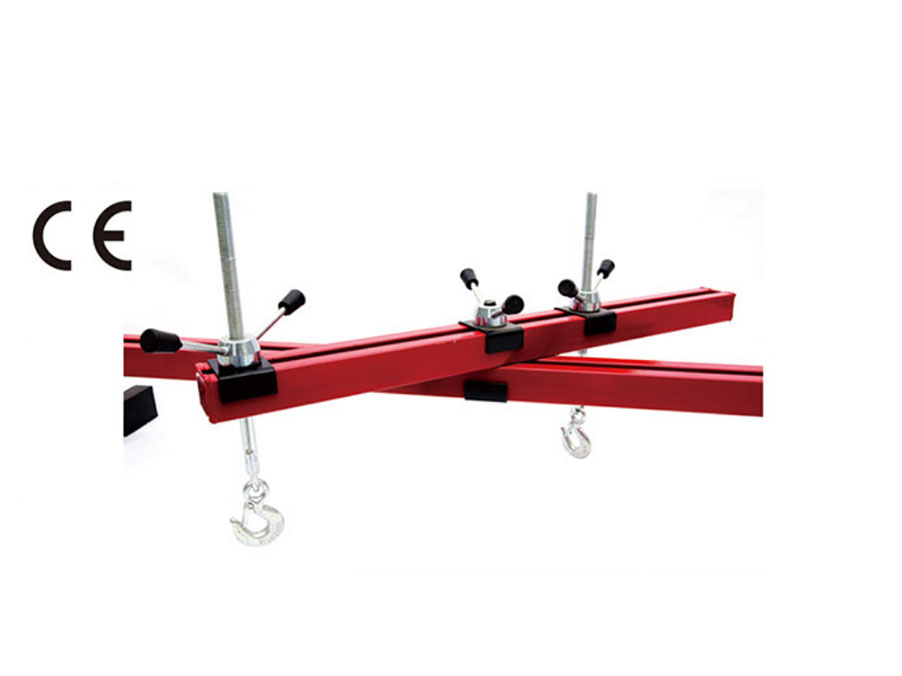

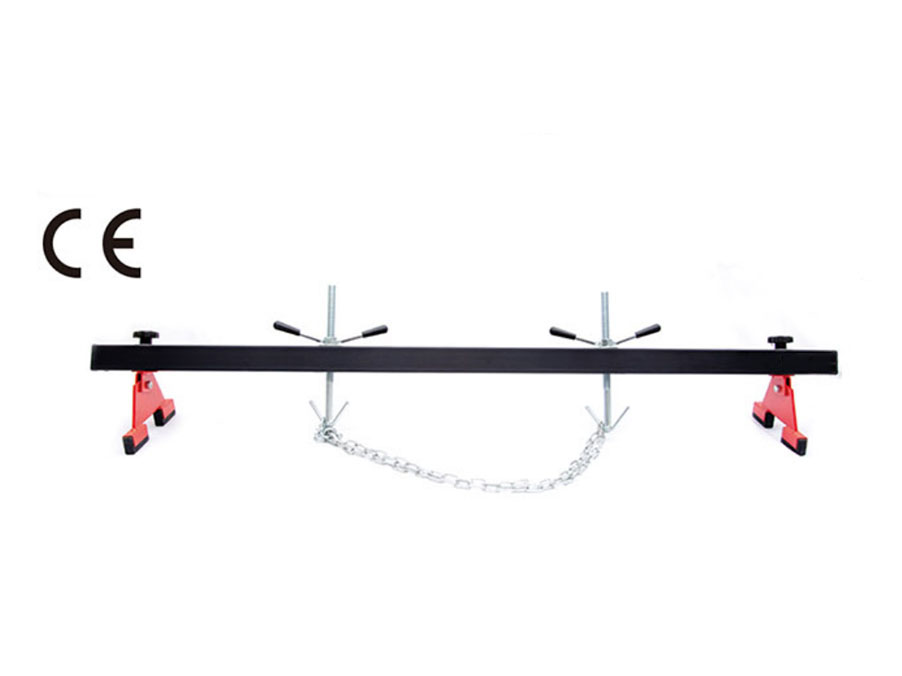

An engine support bar, also known as an engine support beam or engine support tool, is a device used to support the weight of an engine during removal or installation. It typically consists of a long metal bar with hooks or brackets on each end that attach to the engine and a support stand or tripod in the middle.
The purpose of an engine support bar is to prevent damage to the engine or vehicle and to ensure the safety of the mechanic or technician working on the engine. It provides a stable and secure way to hold the engine in place while it is disconnected from the transmission or other components and lifted out of the engine compartment.
Engine support bars are commonly used in automotive repair shops and garages, but can also be used by DIY mechanics who need to remove or install an engine. It is important to choose the right type of support bar for the specific engine and vehicle being worked on, as different engines may require different support configurations.
The working principle of Engine Support Bar
The working principle of an engine support bar is relatively straightforward. It is designed to support the weight of an engine while it is being removed or installed in a vehicle. The basic steps involved in using an engine support bar are as follows:
Identify the appropriate attachment points on the engine block or cylinder head where the support bar will be hooked or clamped onto.
Position the support bar over the engine and attach the hooks or brackets onto the designated attachment points.
Adjust the height of the support stand or tripod so that it is level with the engine.
Tighten any clamps or locking mechanisms to secure the support bar in place.
Use a hoist or crane to lift the engine slightly off of its mounts until the weight of the engine is being supported by the engine support bar.
Remove any remaining bolts or connections that are securing the engine to the vehicle.
Use the hoist or crane to carefully lift the engine out of the engine compartment or lower it into place during installation.
Throughout this process, the
engine support bar ensures that the weight of the engine is being evenly distributed and that the engine is held securely in place to prevent any damage or accidents.
